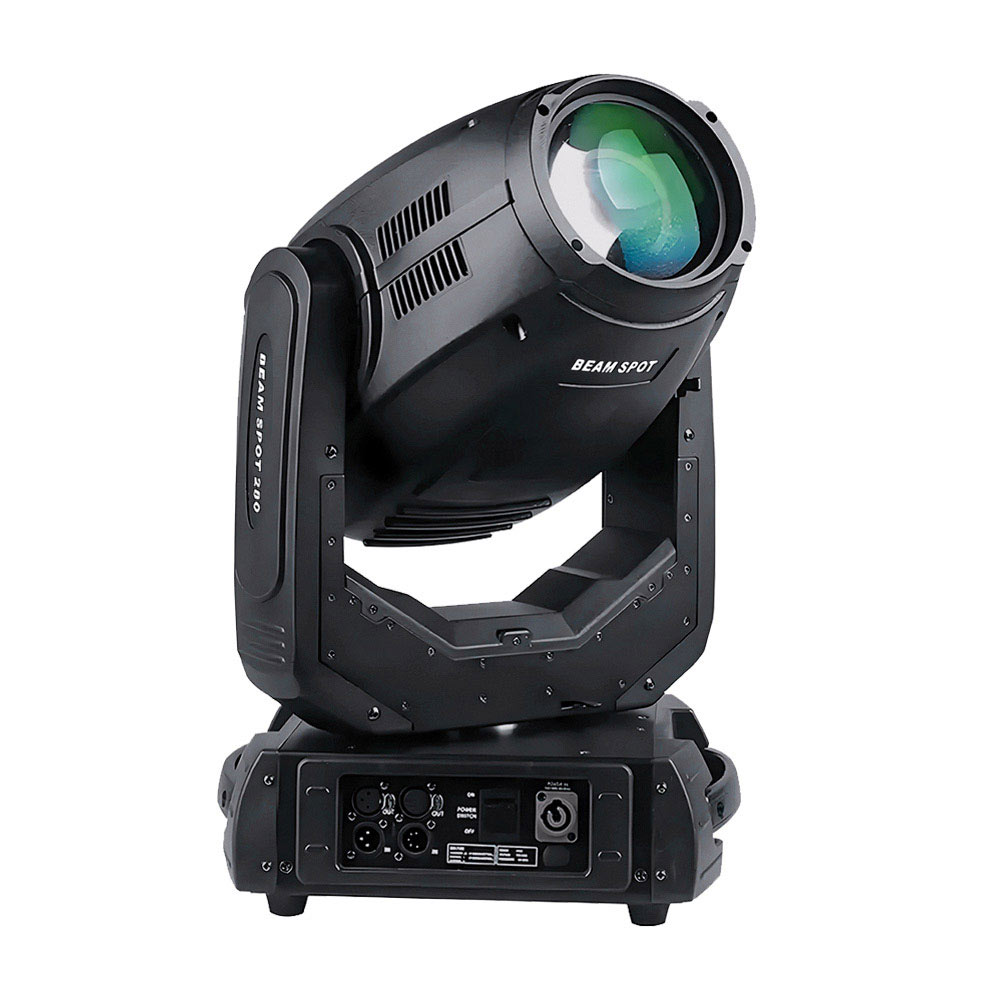

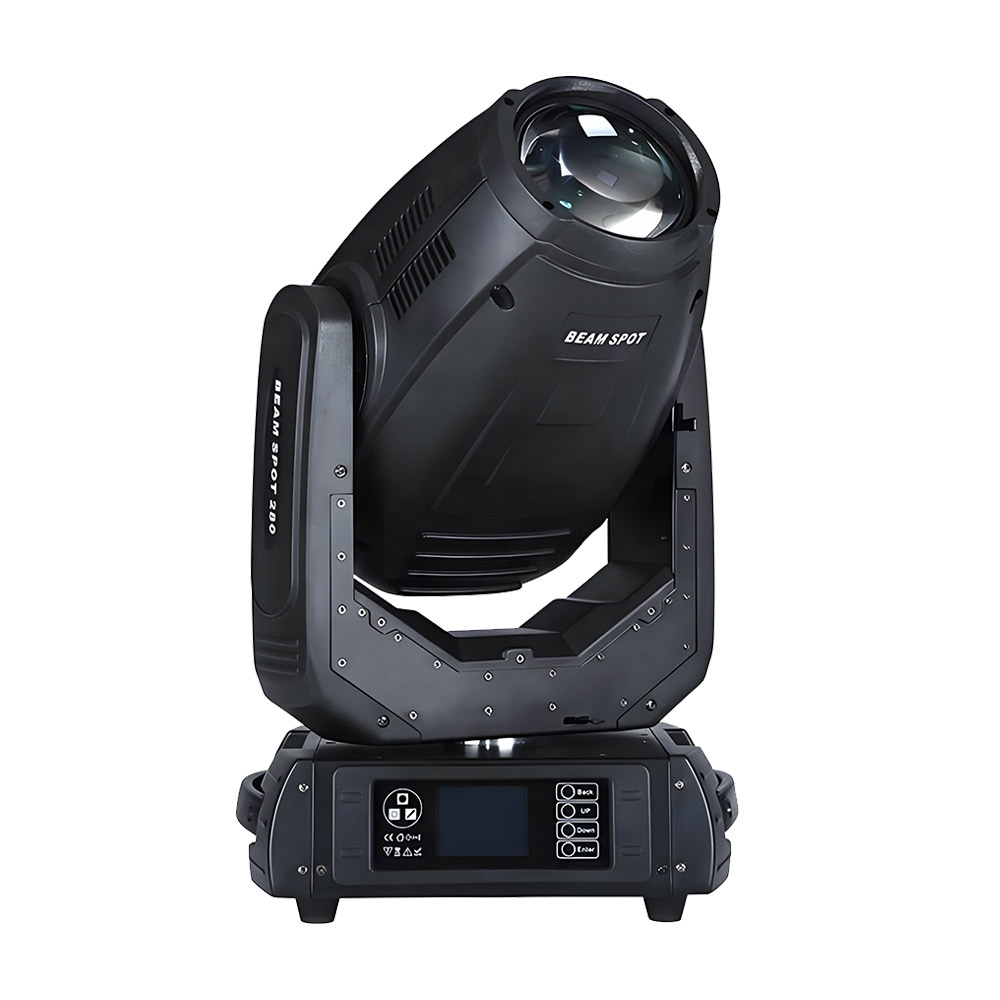

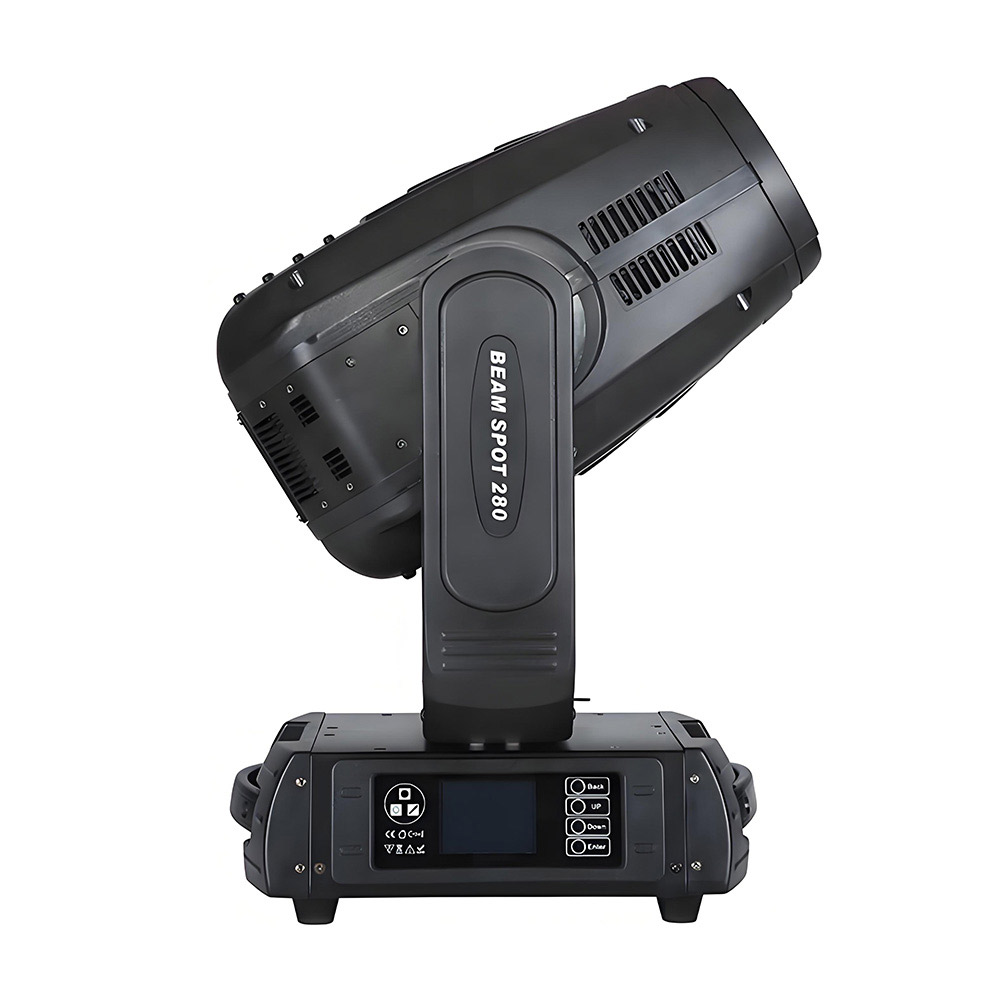

SBW 280 10R

SPECIFICATION

Power consumption: 470W

Input voltage: AC 90V- 240V,50-60Hz·

Light source: Osram 280W 10R bulb

Lifetime: 2200hours

Color Temperature: 8500K

FEATURE
Color wheel: 13 colors + white
Static gobo wheel: 14 fixed metal gobos

Dual prism: 8-facet prism; 6-facet linear prism

Bear angle:2.5°

Dimmer: 0-100% linear dimming system

Automatic focus:0-4

MOTORIZED

Pan movement range: 540°

Tilt movement ranga:270°

8bit/1 6bit movement solution, optional

Automatic Pan/Tilt position correction

CONTROL
DMX Channel: 16/24 Channels
Control mode: DMX512 control; Stand-alone; Master /Slave synchronization.

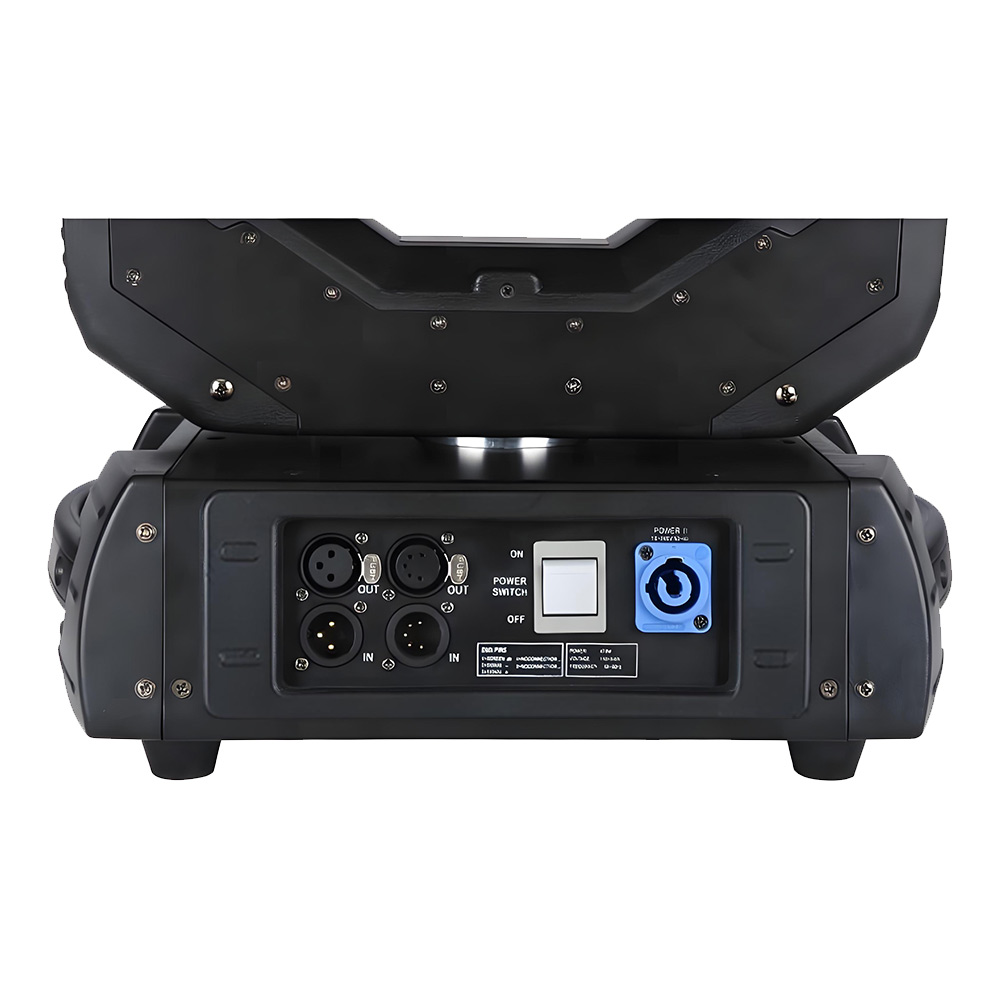

Data in/out socket: 3-pin/5-pin DMX XLR

Power connector:PowerCON input

Protection rate: IP20; for indoor use

Housing: heatproof plastic+module pressing alloy material;

                black/silver/white color, optional

Dimension: 250x375x600mm

Net weight: 16kgs

Gross weight: 18kgs

MISC/OPTIONS

Power cable :included

DMX cable: included

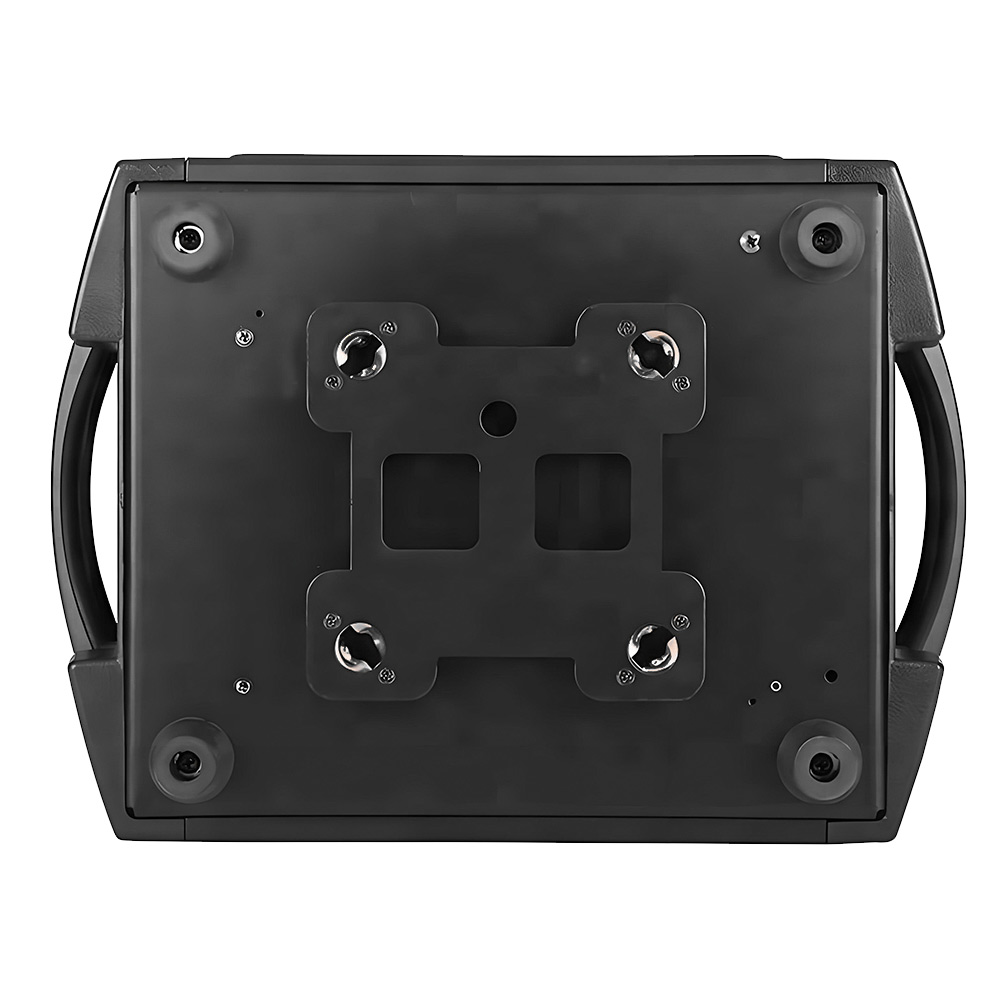

Mounting clamp: included

Safety cable: included
