SOURCE 600W white LED, 20,000hrs White Light Color Temperature: 7500-8000K CRI>90 Input Voltage: 100-240V; 50-60Hz Power Consumption: 700W
EFFECT 8°-35° Linearly Motorized Zoom 8-facet circular and 6-facet linear prism Frost Filter Hybrid Wash Effect 0-100% Linear Dimmer System High Speed Electronic Shutter and 0-25Hz Strobe
FRAMING SHUTTER 4 framing blades, Framing module endless rotation with many graphics of different sizes and shapes, curtain effect 120° rotating framing blades
CMY CMY Linear Mixing System with Macros

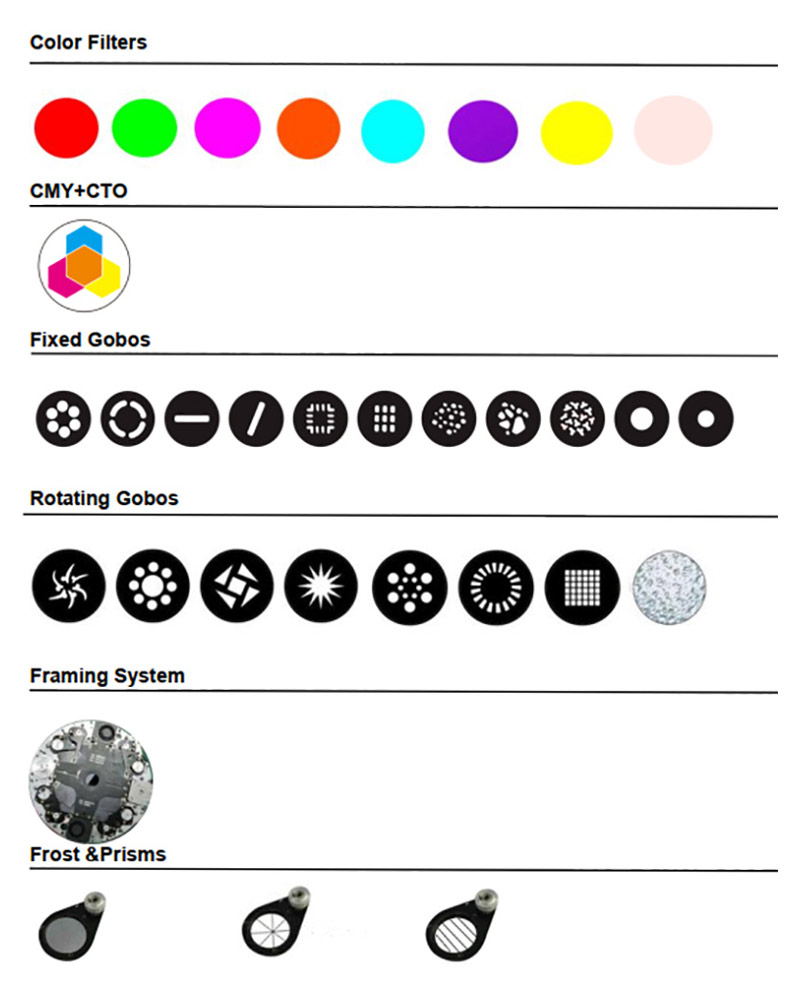

COLOR WHEEL 1 Color Wheel: 8 colors+ open Half Color Effect, Rainbow Effect with bi-directional and Variable Speeds Stepping/Linear Color Changing
CTO 0-100% linear CTO system
FIXED GOBOS 1 Fixed Gobo Wheel: 11 static gobos + white Shaking at variable speed and bi-directional scrolling effect |
| ROTATING GOBOS 1 Rotating Gobo Wheel: 8 Interchangeable glass gobos + white Gobos can befixed Bi-directionally rotating, index, shaking at variable speed and bi-directional scrolling effect
MOVEMENT Pan/Tilt: 540°/270°; 16bit With auto position correction and adjustable speed
CONTROL/CONNECTIONS DMX Channel: 35 Channels Power Connector: True-one input+output Single Connector: 3Pin+ 5Pin DMX XLR input+output Control Mode: DMX 512 Control; Sound Control; Stand-Alone; Master/Slave
OTHER FUNCTIONS With RDM Art-netcontrol optional Able to update software via DMX XLR
HOUSING High-temperature-resistant engineering plastic IP rate: IP20 Fixture size: 328x283x708mm

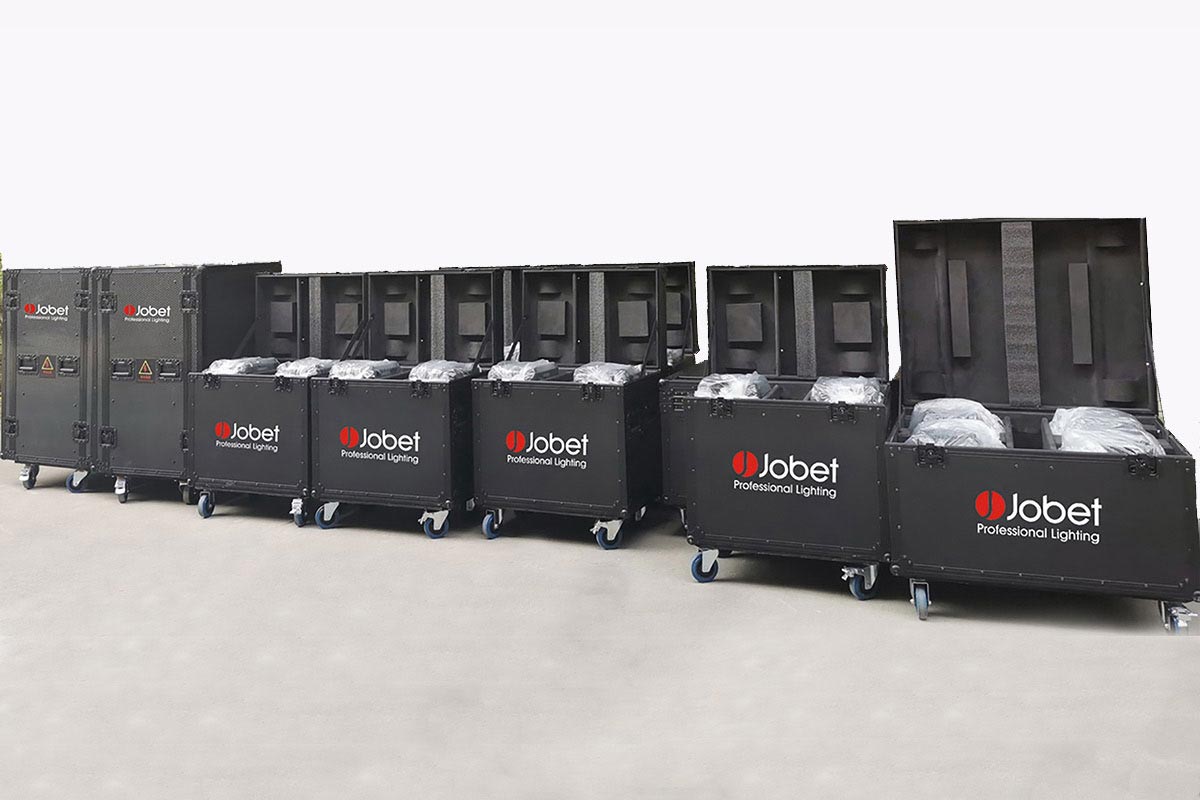

N.W.: 26kgs G.W.: 28kgs Flight case size: 1005x560x805mm(2in1) G.W: 98kgs(2in1) |
