SPECIFICATION
Power consumption: 630W

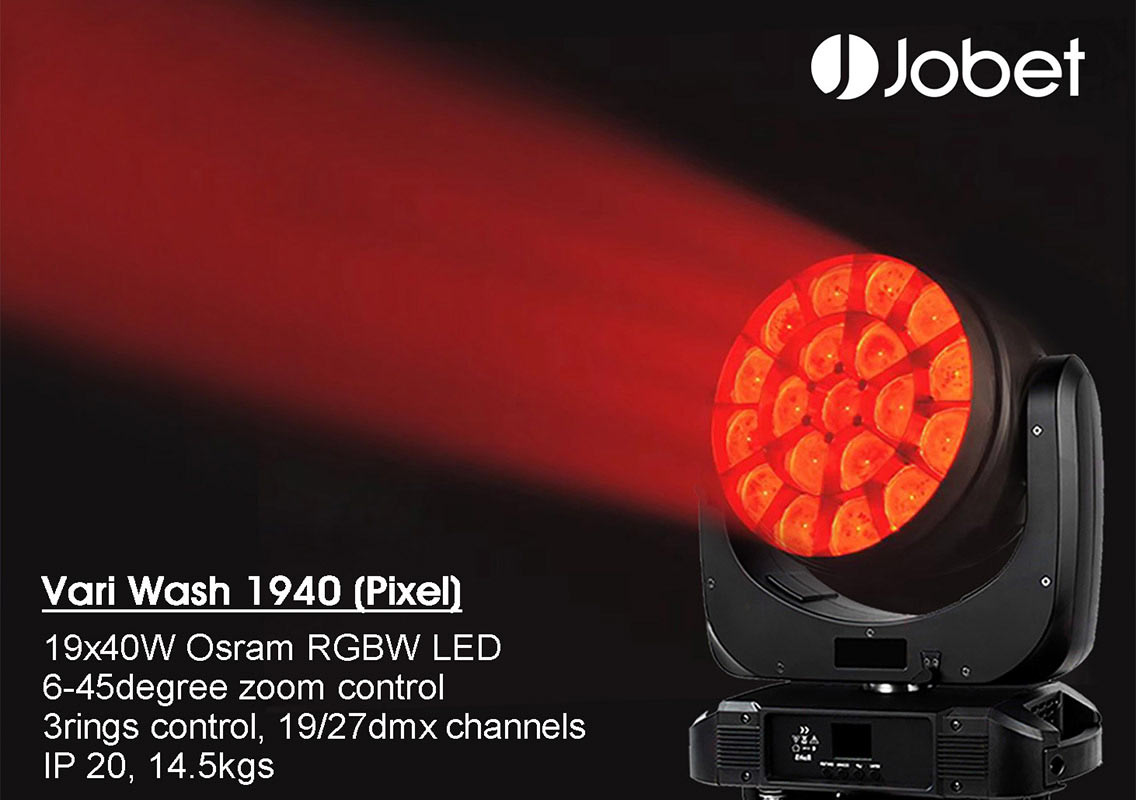

Input voltage: AC 90V-240v, 50-60Hz Light source: Osram 40W RGBW LED X19pcs Fuse: 10A Life time: 60,000hours CTO: 2800-8500K linear adjustment Zoom: Motorized control 6°-45° Dimmer: 0-100% linear dimming system Strobe: 1-20Hz
Motorized Pan/Tilt Pan movement range: 540° Tilt movement range: 270° 8bit/ 16bit movement solution optional
Automatic Pan/Tilt position correction control
CONTROL
DMX Channel: 19/27CH
Control mode: DMX512 control, Stand-alone, Master/ Slave synchronization; Sound Control

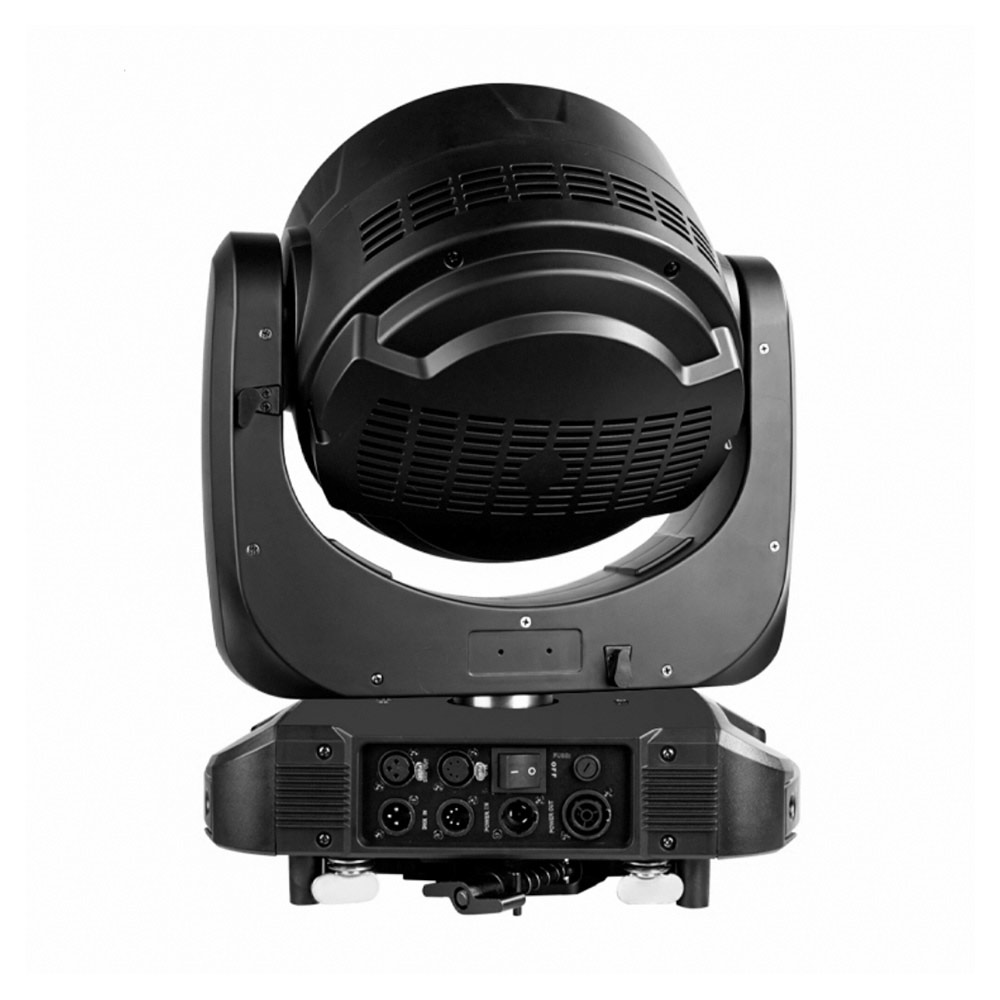

CONSTRUCTION Display: LCD display Data in/out socket: 3-pin+5-pin DMX XLR. Power connector: True-one Power Input+output 16A Industrial electrical plug and socket; optional Cooling: Fans control depends on working temperature Protection rate: IP20 Housing: heal-proof plastic+ module pressing alloy material. Black/ silver/white color, optional |

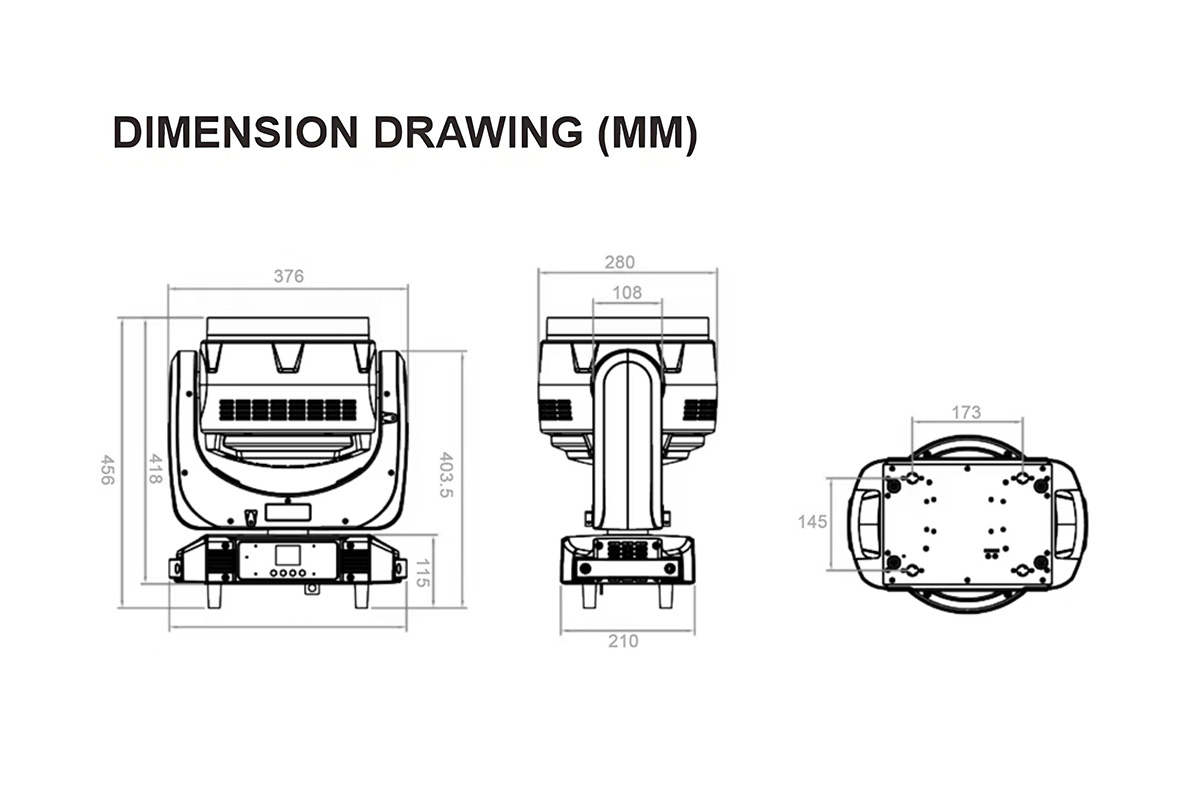

| PHYSICAL Dimensions: 376(L)*280(W)*420(H)mm Packing Size: 535x390x495mm Net Weight: 14.5kg Gross Weight: 17.50kg

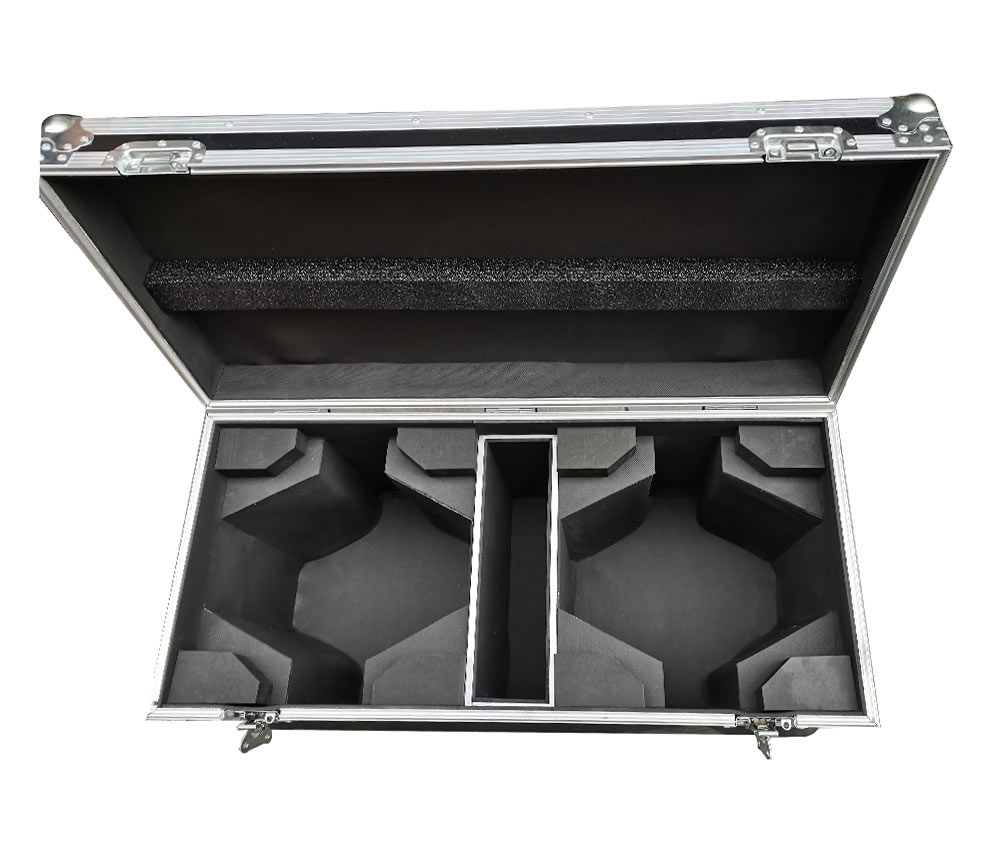

ACCESSORIES Power cable: included Mounting camp: included Safety cable: included Flight case: optional
KEY FEATURES 1. Make powerful and excellent wash effects

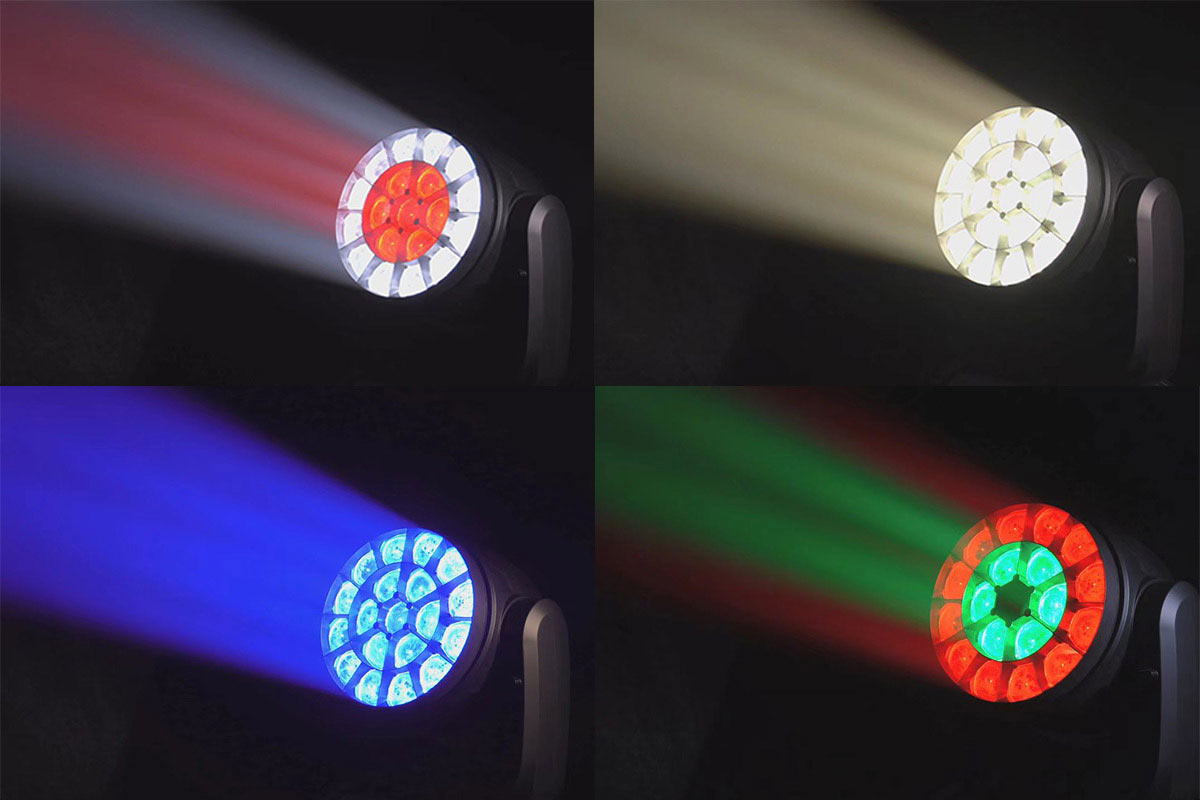

2. Offer vivid pixel effect

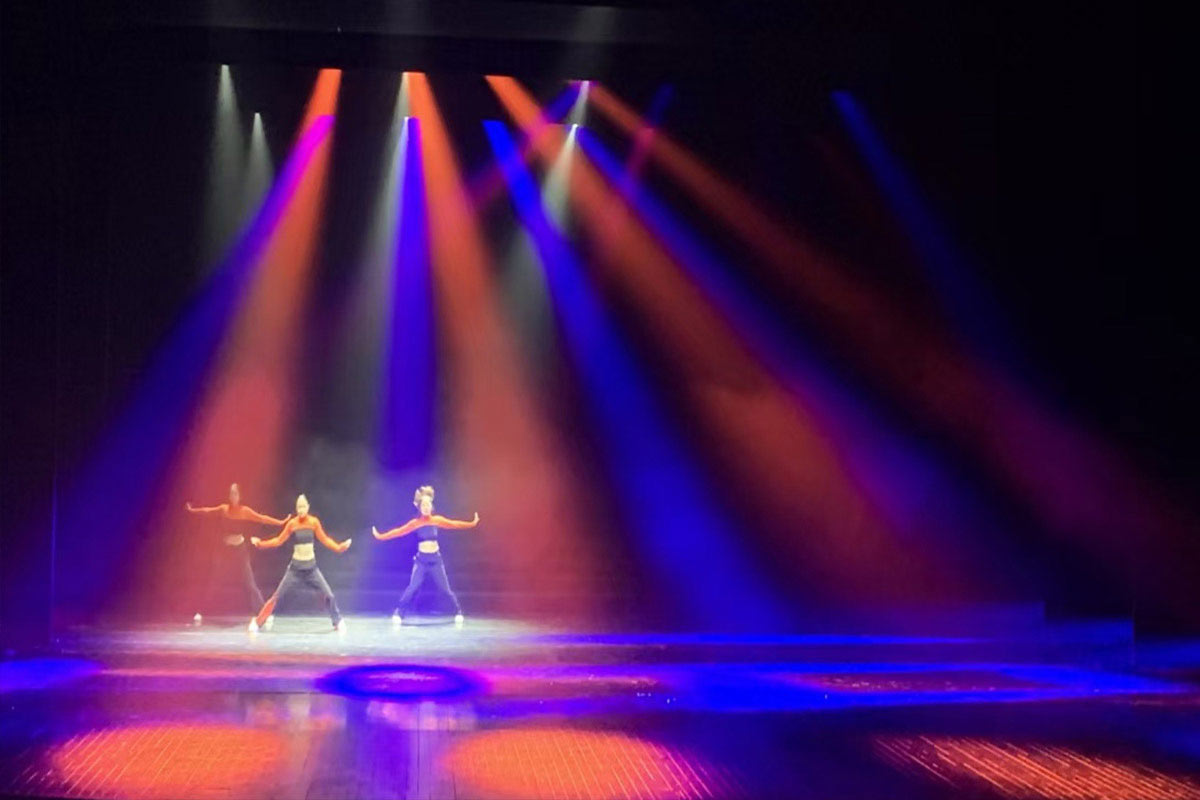

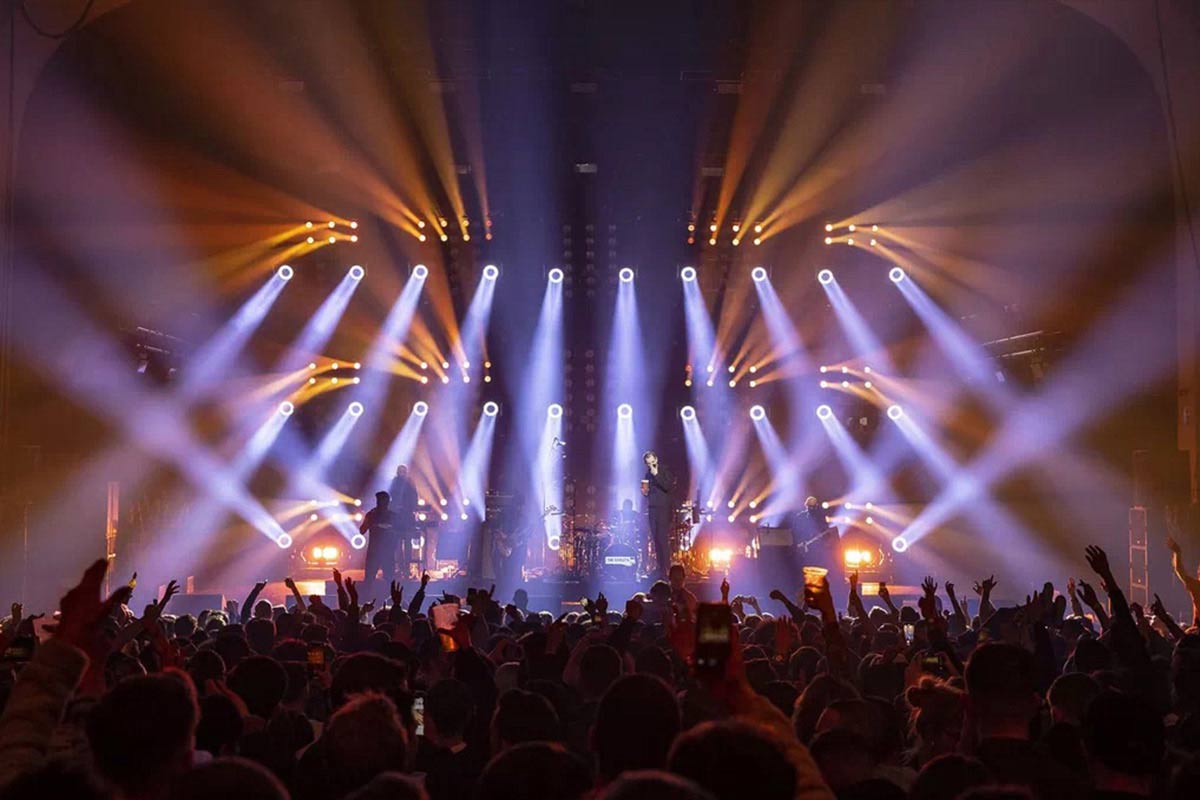

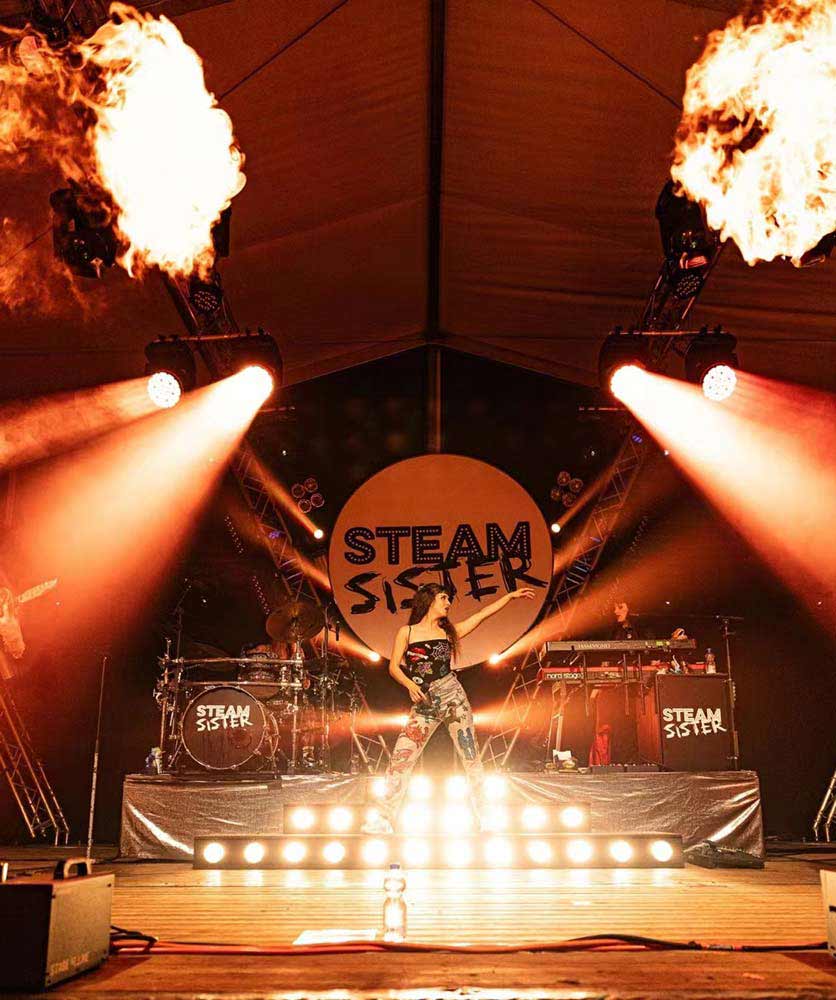

3. Effcient motorized zoom control gives wide color coverage and spot effects 4. CTO from 2800K to 8500K available to be used as illumination light 5. Intelligent cooling system; reliable quality 6. Widely use in church/concert/ art museum/car show |
