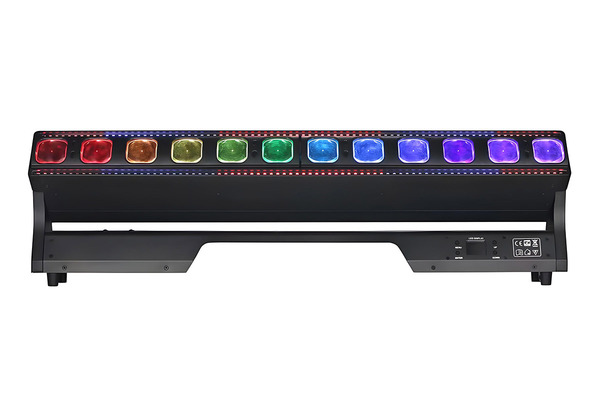

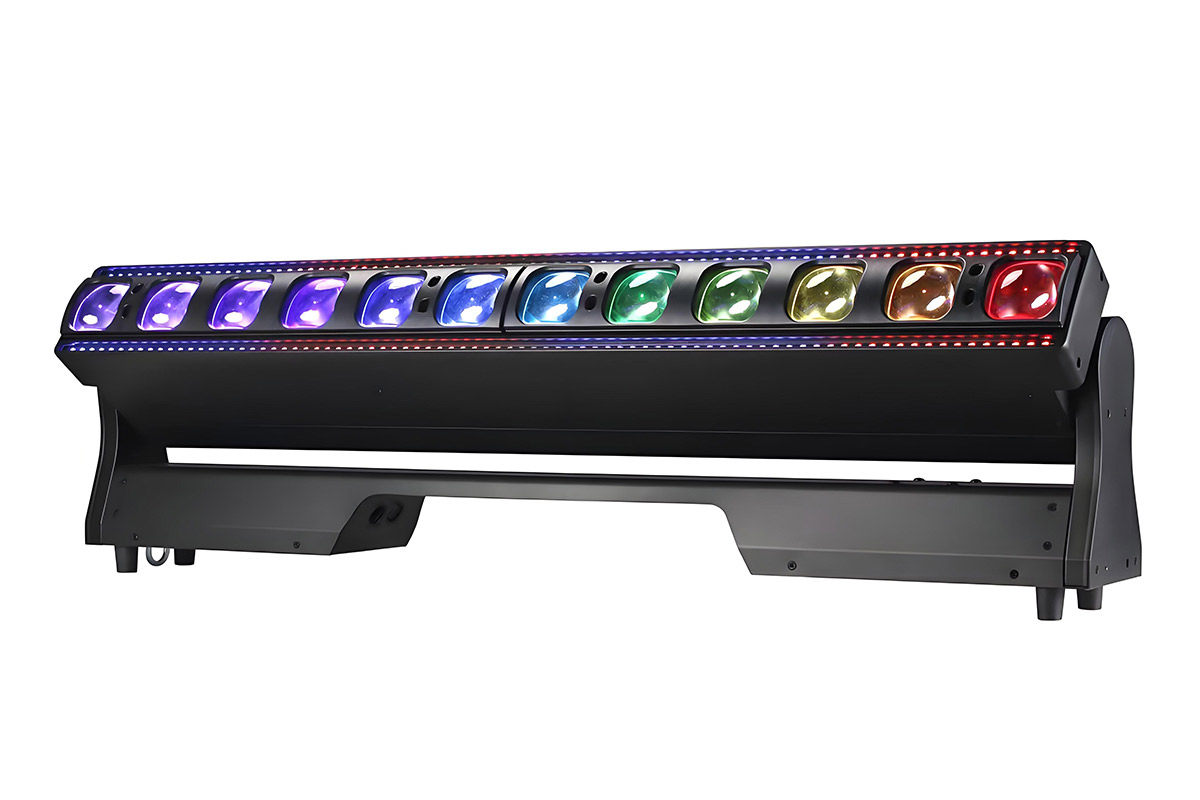

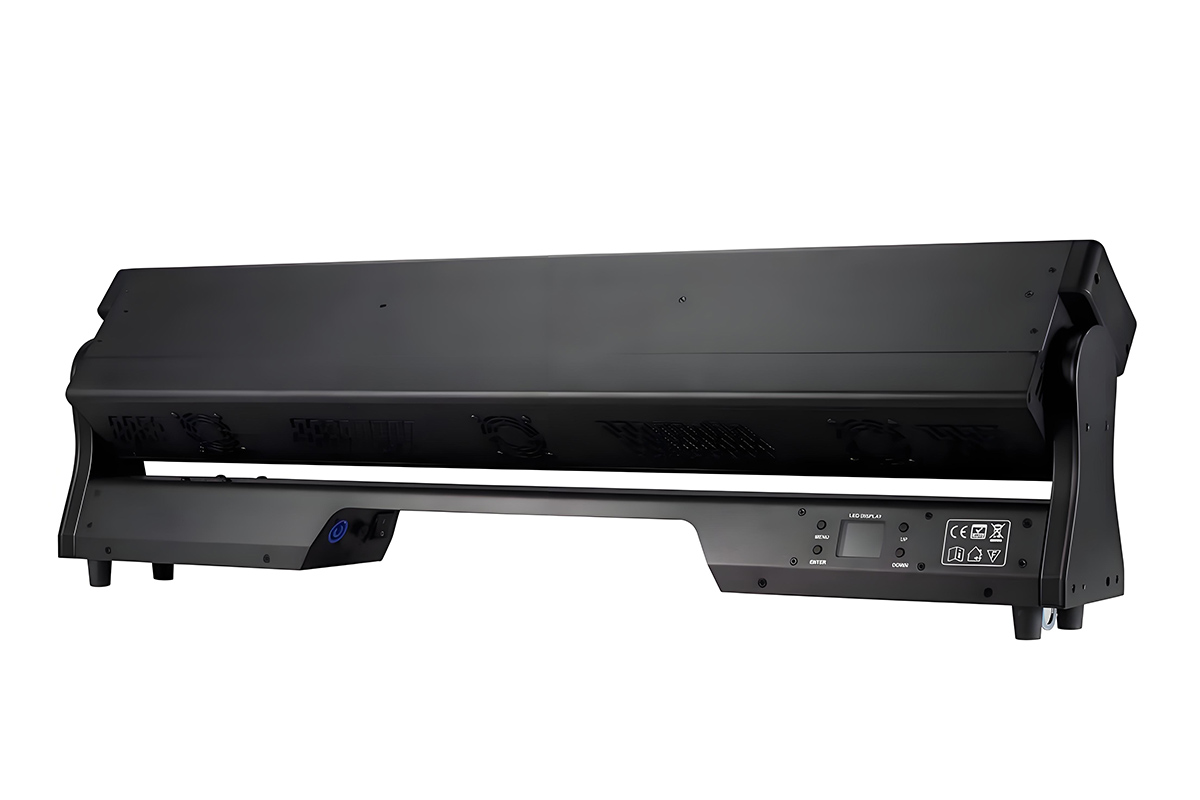

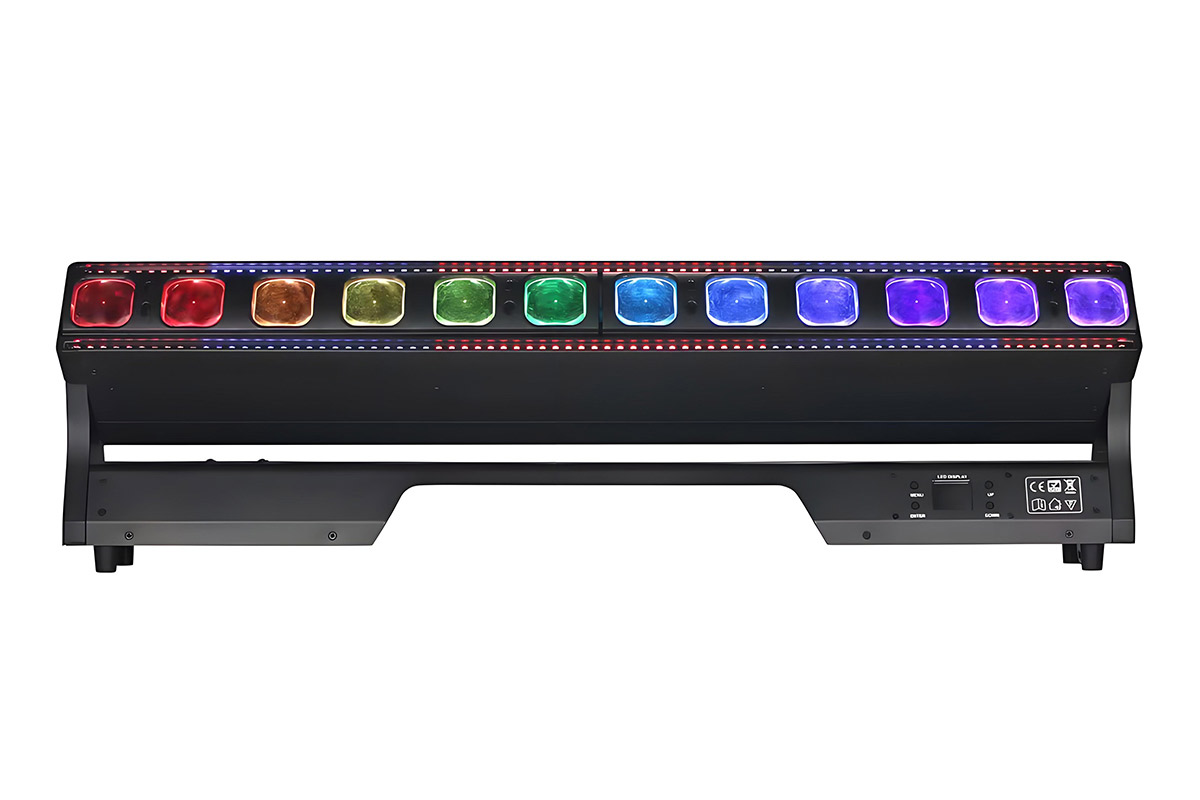

Magic Bar 1240P


The Magic Bar 1240P adopts a 12pcs 40W  4-in-1 LEDs (RGBW) is latest advanced led wash bar light offers linear motorized zoom from  3°-30°. With additional 12pcs+164X0.5W RGB 3in1 LED, the fixture offers excellent pixel and sharpy beam and wash multi effects.  It is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. Following are key features for ref:
1. Flicker-free,
2. 0-100% smooth dimmer system
3. It features high brightness and stability
4. Linear zoom control able to give sharpy beam and uniform wash colors
Description： 12X40W RGBW 4in1+164X0.5W RGB 3in1 LED Bar
Categories： LED Bar Light
Whatsapp  Add Quote
product warranty
No MOQ Req
OEM/ODM
Warranty
OL Service
Quality
Parameters


SOURCE&ELECTORICAL

Power Consumption: 500W

Input voltage: AC90V-240V,50-60Hz

Light source: 40W OSRAM RGBW 4in1 LED X12pcs + 164X0.5W RGB 3in1 LED

Lifetime: 60,000hours


OPTICAL&CONTROL

Display: LCD display

Beam Angle: 7°

Zoom Range: 3°-30°

Tilt Control: 220°

DMX channels: 27CH/30CH/67CH

Individual LED control

Two ends able to be controlled seperately

Dimmer level: 0-100% linear dimming system

Refresh rate: 4KHz

Cooling system: strong heat-sink and fan forced cooling system

IP rate: IP20

Control Mode: DMX 512 control; Master/Slave, Stand-alone mode; RDM

Hoursing: Die-casting aluminum body


DIMENSION&WEIGHT

N.W.: 14.8kgs

G.W.: 17kgs

Dimension: 1000(L)X165(W)X225(H)mm


ACCESSORIES

Safety cable: 1pc

DMX cable: 1pc

Power cable: 1pc

Clamp: optional

Flight case: optional
