Founder Z9 IP

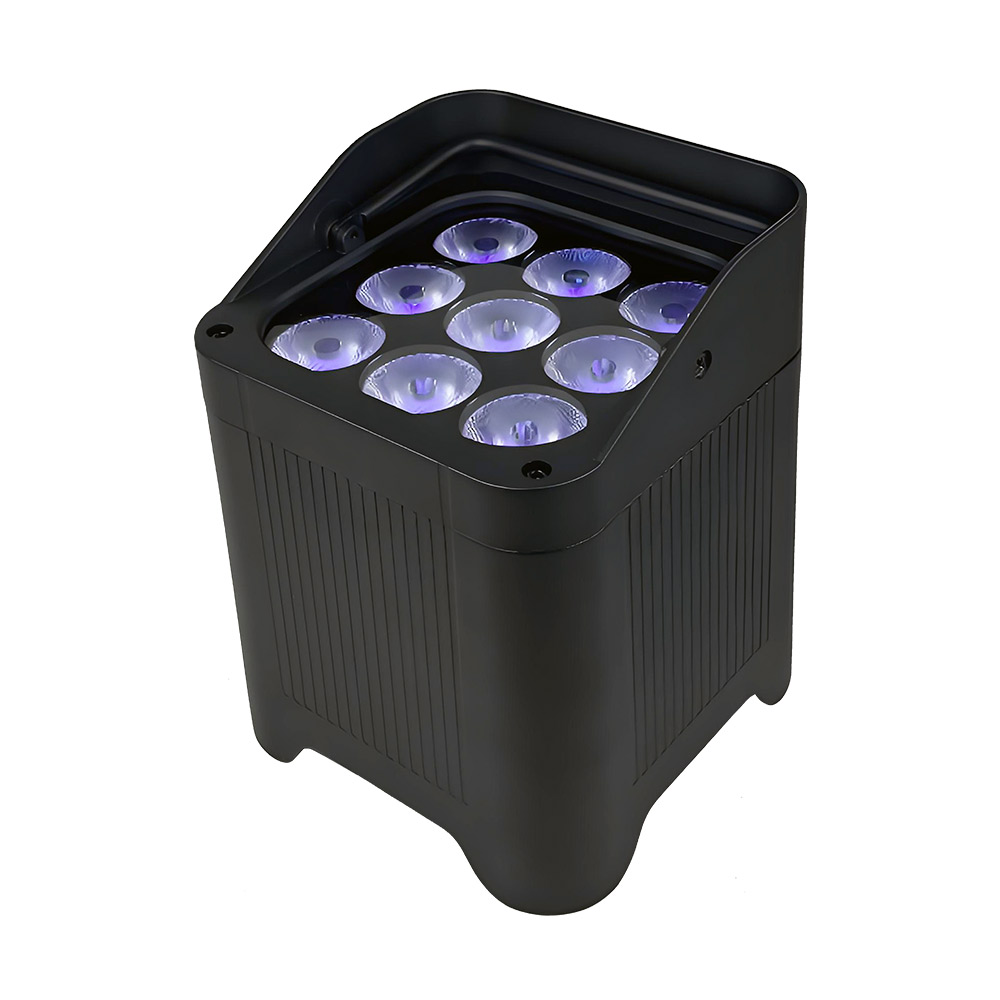

1. Featuring a metal housing, it adopts the classic compact size same as Chauvet Freedom Par.
2. It provides brighter, even and smooth lighting with no uneven color spots for professional stage effects.

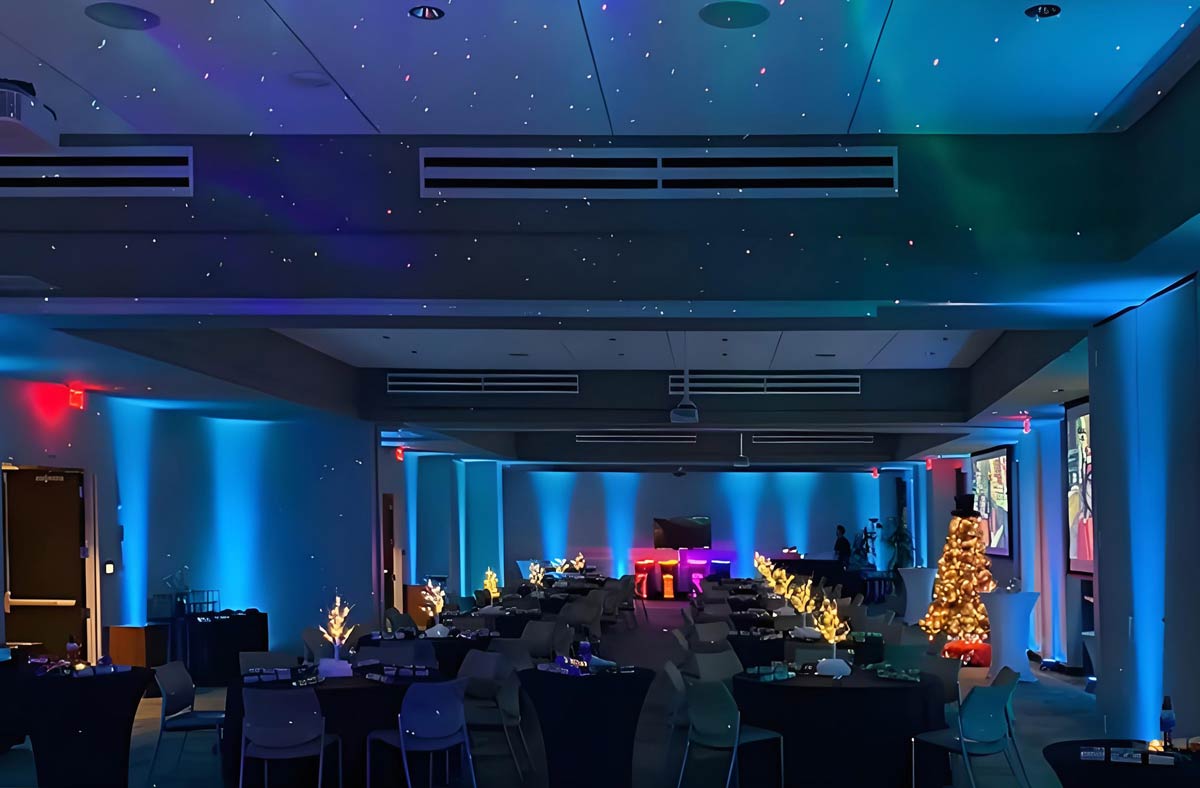

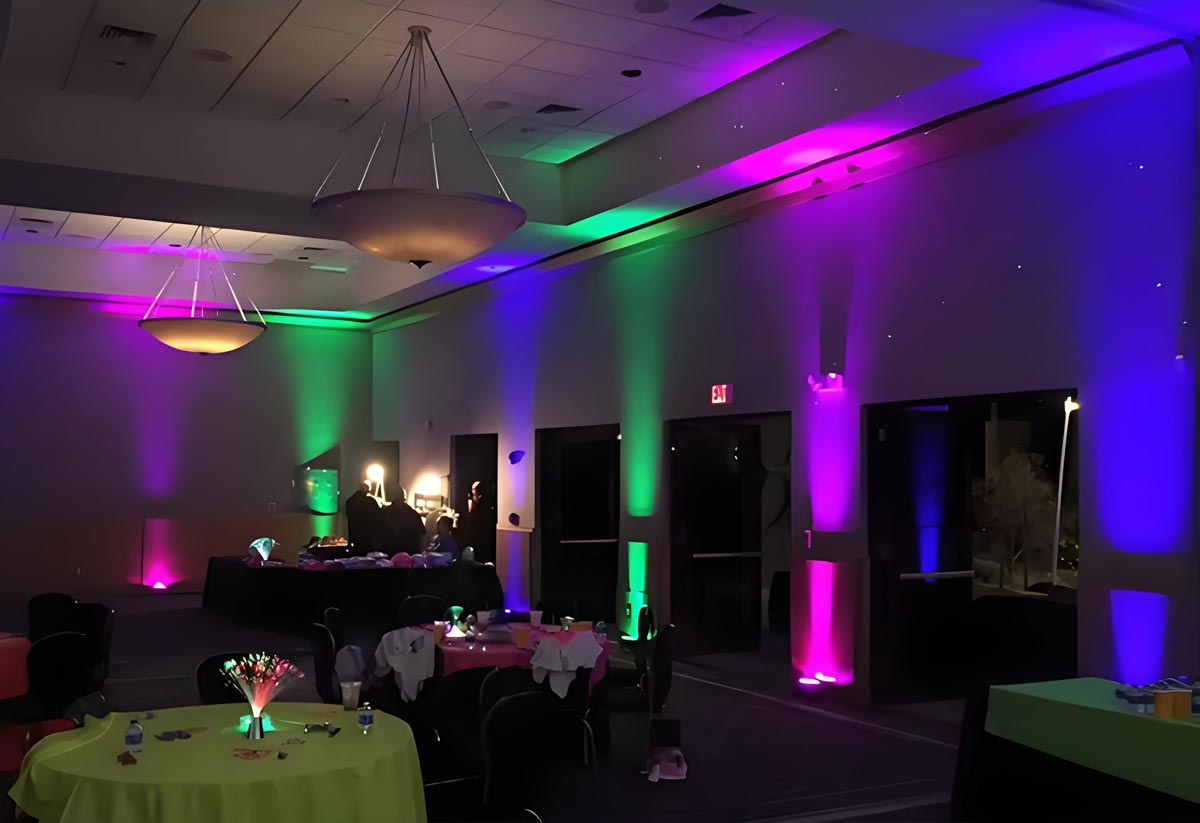

3. With 2000K–10000K CTO via DMX or on board menu, ideal for high-standard white light scenarios like weddings and conferences.
4. Freedom Par LED Wash Light Z9 IP supports three charging methods for flexible single and batch use.

Description：	9X15W RGBWAUV LED Battery UpLight For Outdoor
Categories：	LED Par Light

Whatsapp Add Quote

product warranty

No MOQ Req

OEM/ODM

Warranty

OL Service

Quality

Parameters

SPECIFICATION

Power consumption: 110W

Input voltage: AC 110V-250V, 50-60Hz

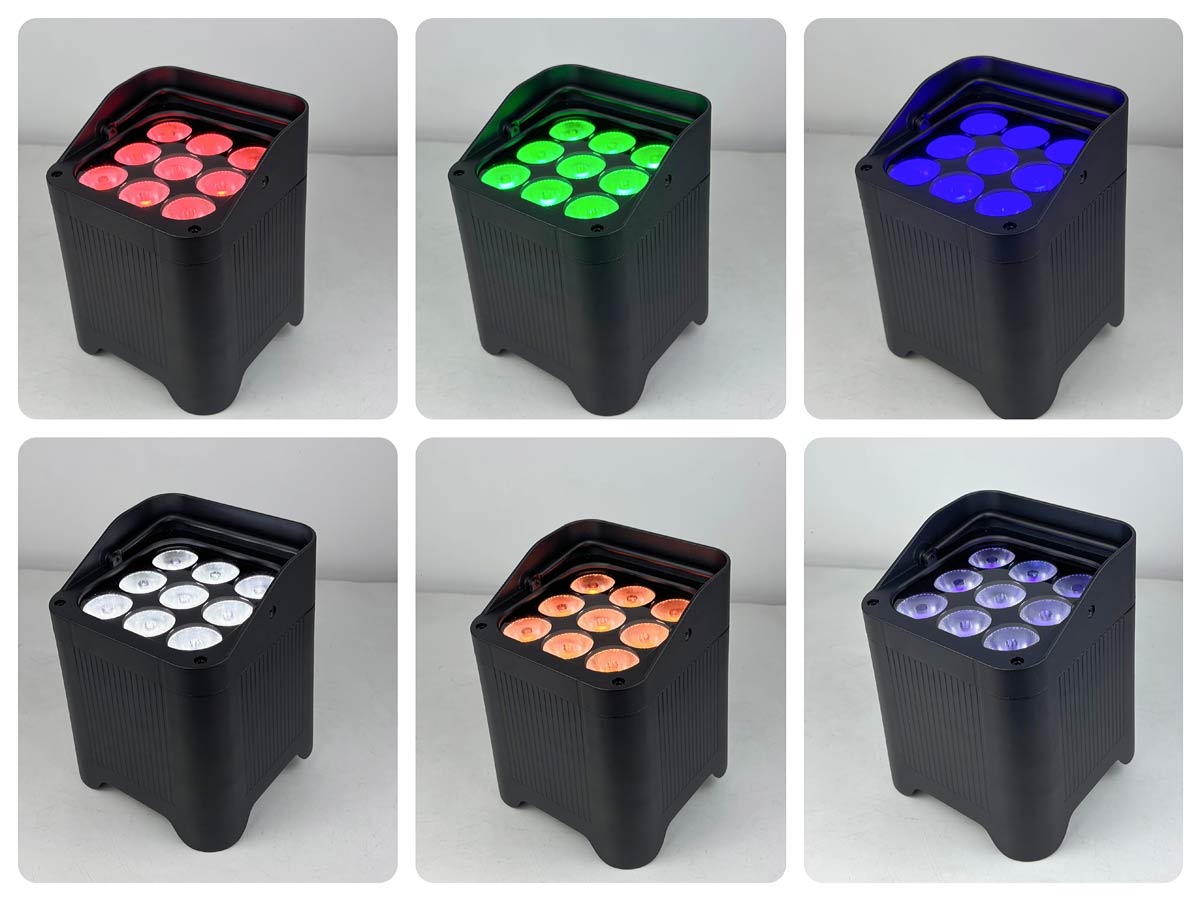

Light source: TX 15W RGBWAUV/RGBALC 6in1 LED X 9pcs

LED Lifetime: >50,000hours

DMX channel: 3/6/8/12CHs

Beam angle: 25°/45°

Dimmer: 0-100% linear control

Fresh rate: Flicker-free

CTO: 2000K-10000K

Control mode: DMX512 control, Stand-alone, Master /Slave synchronization; Sound control; Remote; 2.4G DMX Wireless; Wifi APP control

BATTERY

Battery capacity: 9600mA

Battery lasting time: full on can last 4-5hrs; auto-run can last 7-8hrs; one color can last 20-24hrs

Fast-charging Methods

12V Direct Charging: Comes with a voltage converter adapter, supporting 110V/220V direct plug-in charging.

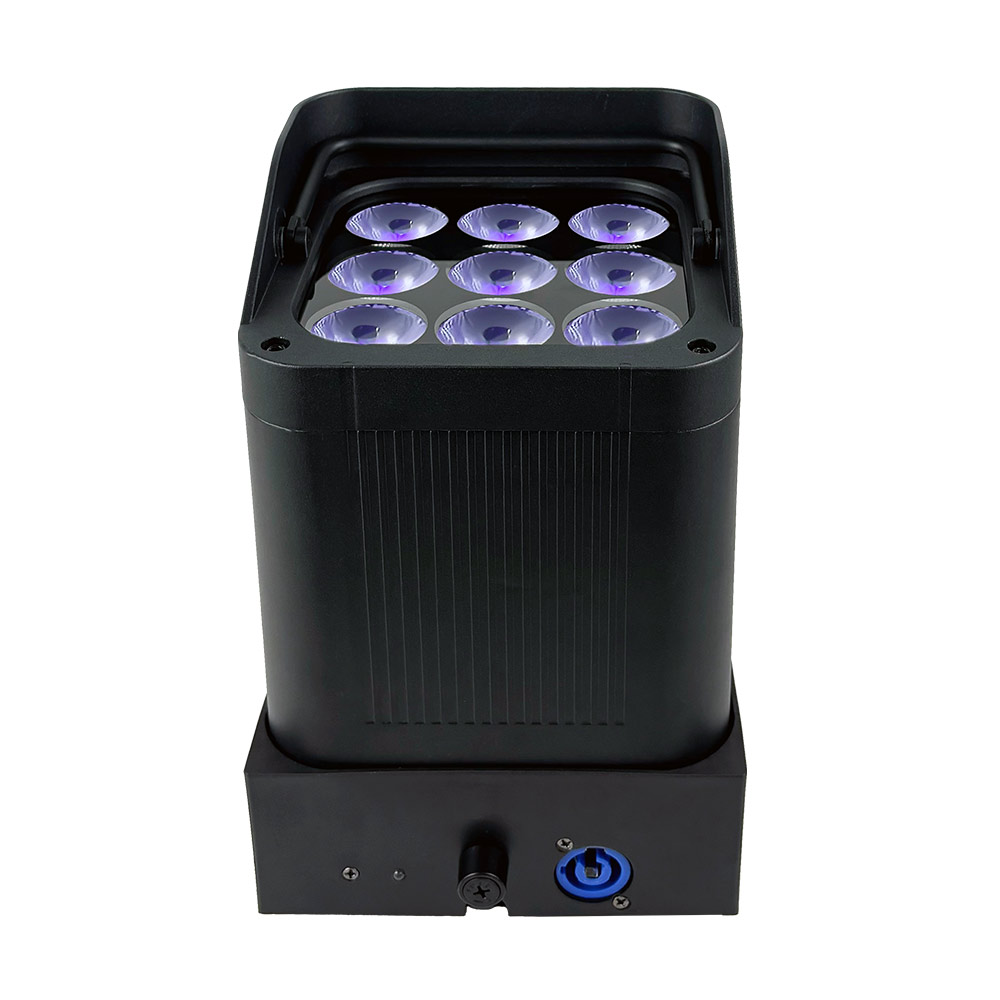

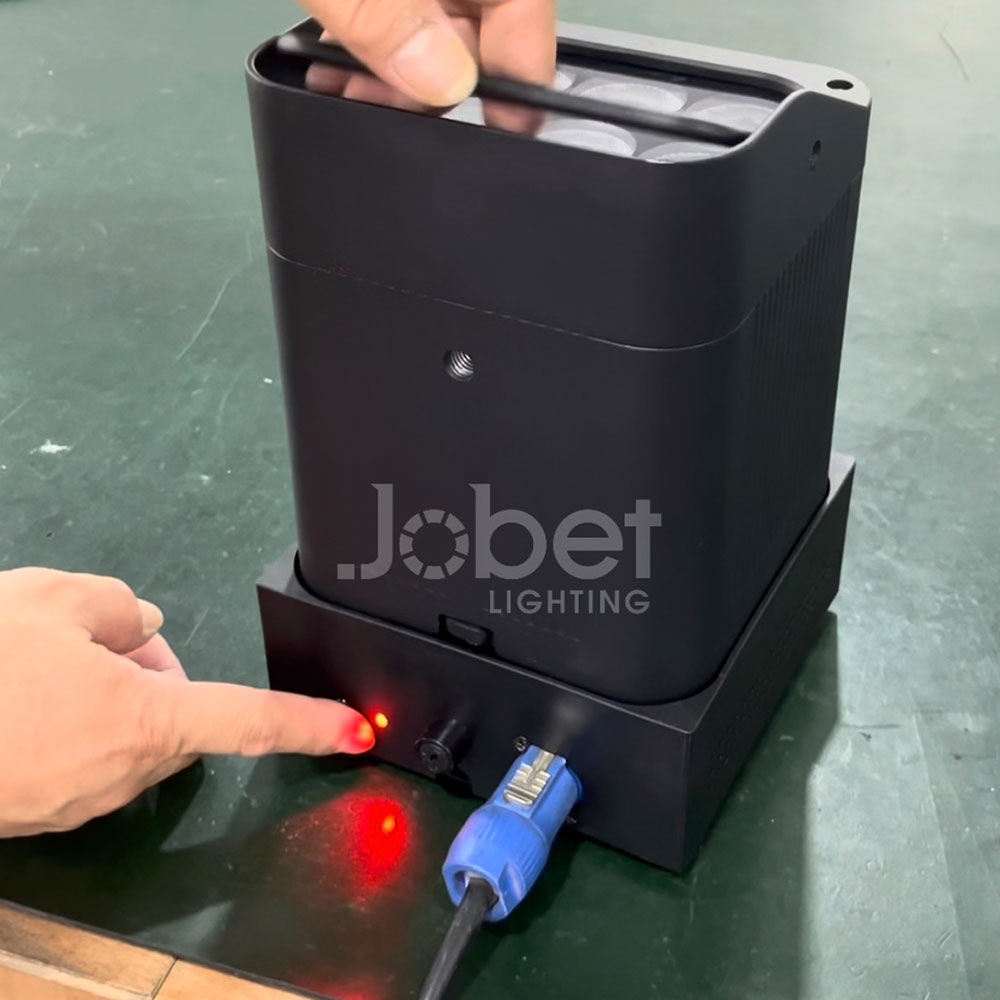

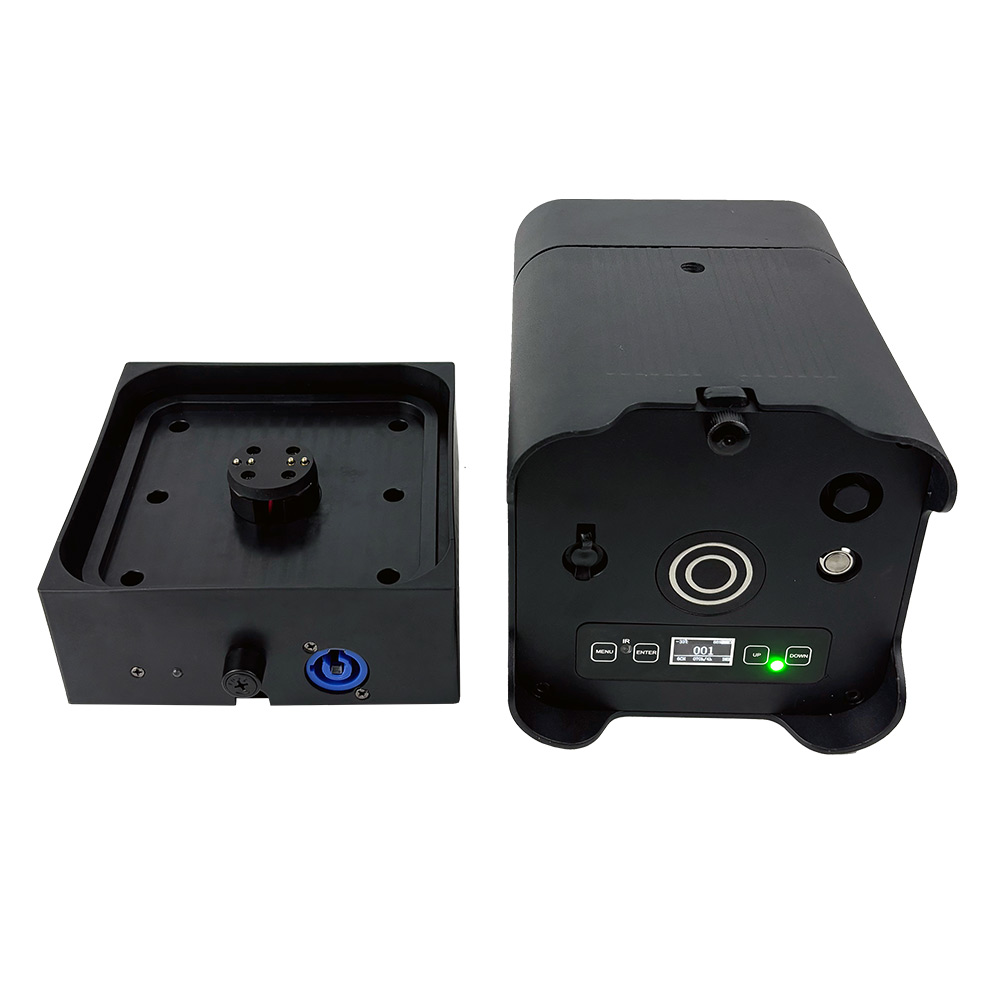

PogoPin Fast Charging: Built-in copper pogo pins in LED Par Z9 enable automatic fast charging on the dedicated base with safe insulated design.

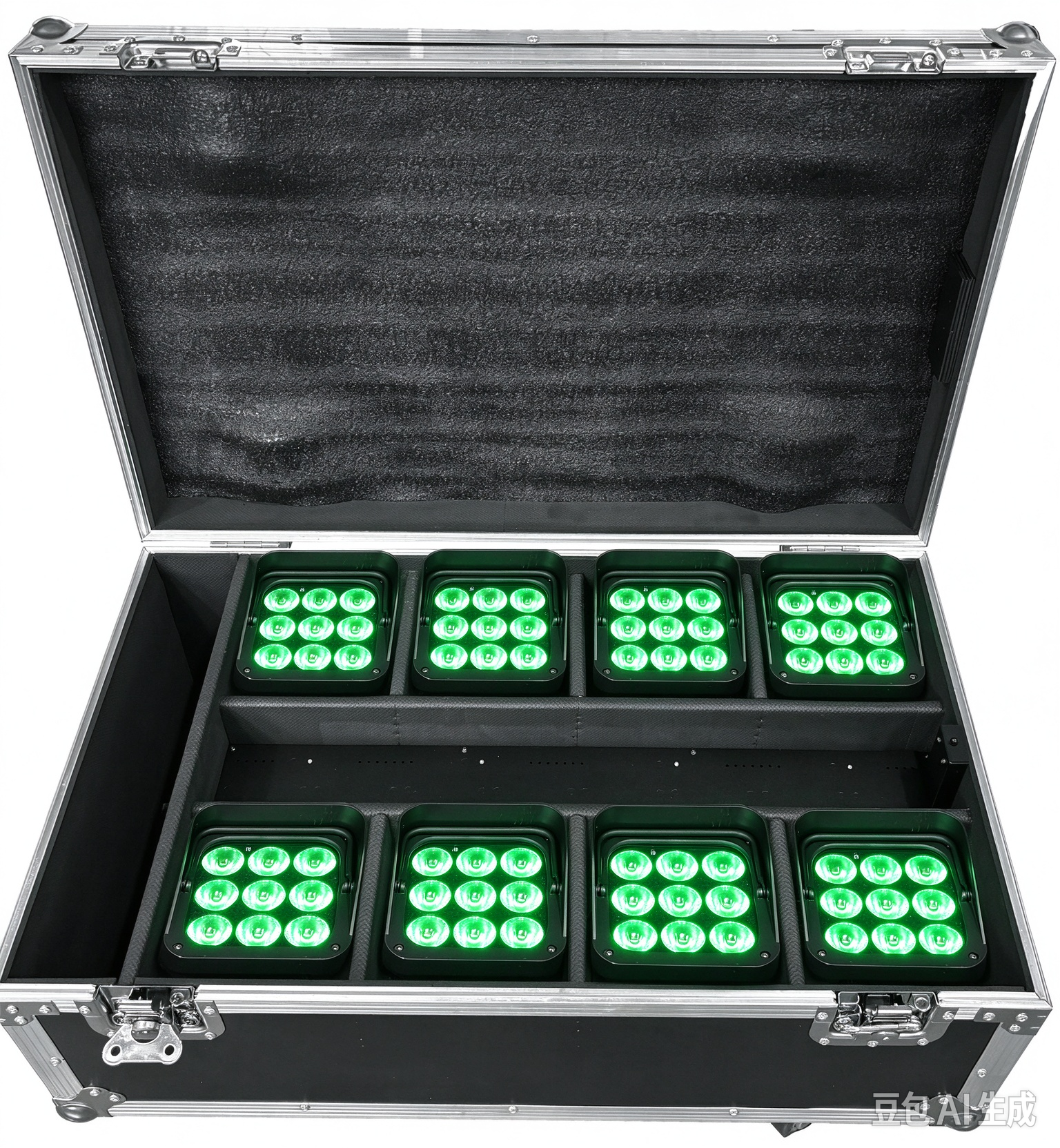

Flight Case Batch Charging: The charging base can be installed in 8-IN-1 or 10-IN-1 flight case for batch charing. The case features an automatic power-off function when closed, preventing over heating and fire risks

CONSTRUCTION

Display: LCD display

Data in/out socket: 3-pin/5-pin DMX XLR

Power connector: IP rated Power Charing Ports

Protection rate: IP65

Housing: Die-casting aluminum housing, black/silver/white color, optional

PHYSICAL

Packing dimension: 230*220*200mm

N.W.: 3.2kgs

G.W.:4.0kgs

MISC/OPTIONS

Power cable: included
